VSE48-045- DRIVE

VSE48-045- DRIVE:

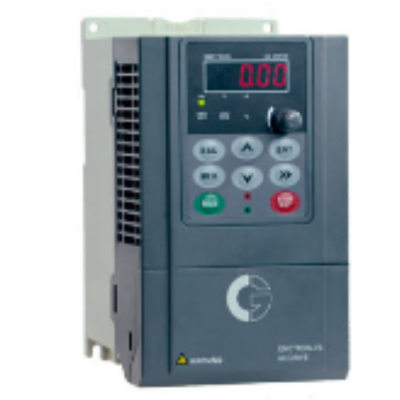

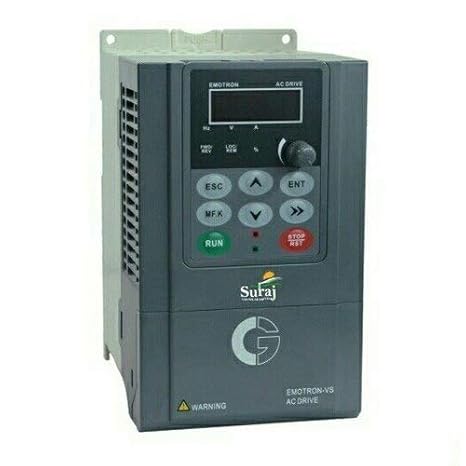

The VSE48-045 is a model from the Emotron VS series, specifically designed for industrial applications requiring variable and constant torque control. This series offers both V/f and sensorless vector control modes, making it suitable for a variety of applications such as fans, pumps, compressors, conveyors, cranes, mixers, and other similar machinery.

cgglobal.com

Key Specifications of the VSE48-045:

• Power Capacity: 30 kVA
• Rated Output Current: 45 A
• Applicable Motor Power: 22 kW (30 HP)
• Input Voltage: 3-Phase, 415V AC
• Frequency Range: 50/60 Hz
• Dimensions: Approximately 30 cm (W) x 46.5 cm (H) x 45 cm (D)
• Weight: Approximately 22 kg

Features:

• Control Modes: V/f and sensorless vector control for versatile application suitability.
• Cooling: Forced air cooling for efficient heat dissipation.
• Protection: Includes built-in protection features such as overcurrent, overvoltage, and thermal overload protection.
• User Interface: Equipped with a user-friendly keypad for easy operation and parameter setting.

For detailed technical information and installation guidelines, refer to the product manual available on ManualsLib.

emotron.com

This drive is suitable for applications requiring reliable and efficient control of industrial machinery
