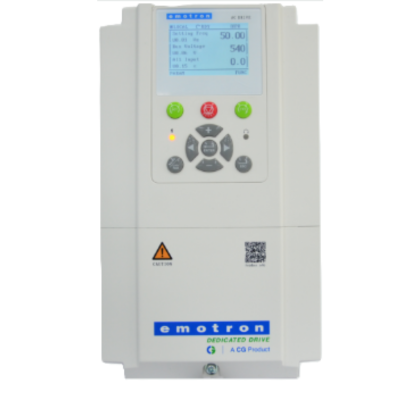

VSR11-9p5-P- DRIVE :
The VSR11-9P5-P is a model from the Emotron VSR series, specifically designed for solar water pumping applications. This series integrates a self-adaptive, high-accuracy Maximum Power Point Tracking (MPPT) algorithm to optimize water flow output, ensuring efficient operation even under varying sunlight conditions.
Key Specifications of the VSR11-9P5-P:
Power Supply: Supports both AC and DC inputs, offering flexibility in operation.
Input Voltage:
Output Voltage: Three-phase 220V.
Rated Output Power: 9.5 kW.
Recommended Solar Array Power: 3.3 kWp.
Maximum Input DC Current: 18 A.
Output Current: 2.2 A.
Dimensions: 173 mm (W) x 110 mm (H) x 135 mm (D).
Weight: Approximately 2 kg.
Features:
MPPT Algorithm: Ensures maximum water flow output by adapting to changing sunlight conditions.
Tank Level Control: Dedicated function for water pumping systems to manage water levels effectively.
Dry Run Protection: Built-in feature to protect the pump against damage due to dry running.
Overload Capability: Supports up to 200% of rated load for 1 second, providing robust performance under demanding conditions.
Cooling: Efficient cooling design with independent air ducts to enhance reliability.
For detailed technical information and installation guidelines, refer to the product manual available on ManualsLib.
This drive is suitable for applications requiring reliable and efficient solar-powered water pumping solutions.
